Superior cable handling equipment
Our equipment is developed and adapted for fast, cost-effective, and flexible operations in demanding environments.
4T Tensioner
Cable pulling and controlled feeding during loading, transpooling and installation.
| Pulling force | 40 kN (approx. 4 tf) |
|---|---|
| Speed | 0–15 m/min |
| Wheel pairs | 4 |
| Power unit | Integrated hydraulic |
8T Tensioner
Cable pulling and controlled feeding during loading, transpooling and installation.
| Pulling force | 8 tf (approx. 78.5 kN) |
|---|---|
| Speed | 0–30 m/min |
| Wheel pairs | 8 |
| Power unit | Integrated hydraulic |
250T Carousel
Cable storage, loading and payout on vessels or barges.
| Cable capacity | 250 tonnes |
|---|---|
| Coil diameter | 10 m outer / 5 m inner |
| Max. rotational speed | 0.85 rpm |
| Transport | 2 × 20-ft containers |

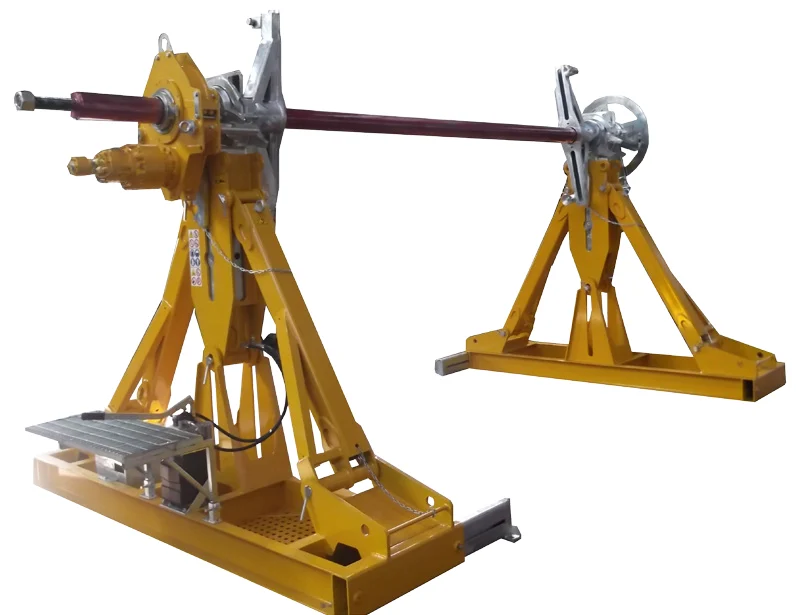

50T Reel-Stand
Reel handling, powered winding and unwinding, and controlled braking.
| Max. reel weight incl. cable | 50 tonnes |
|---|---|
| Reel diameter | 3.5–4.8 m |
| Max. reel width | 3.6 m |
| Double hydraulic drive | 408×2 |
| Power unit | OMAC F306.18.CC, 18 hp |

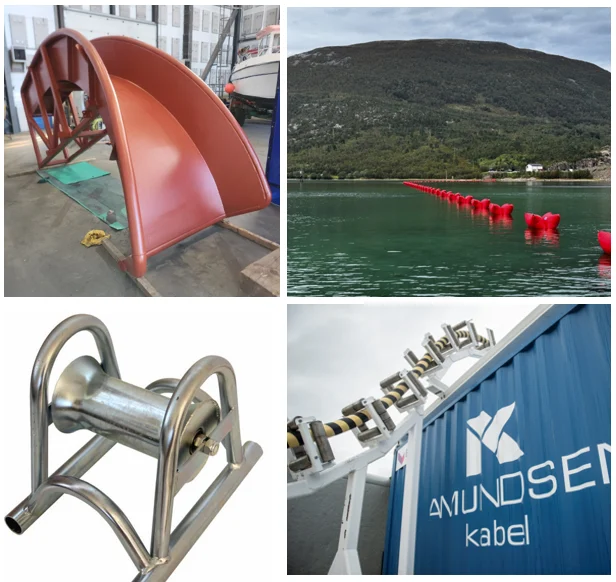

Various Cable Handling Equipment
Cable guidance, support and flotation during installation and shore pull-ins.
- Cable chute: 2.5 m MBR
- Trackways
- Cable flotation bags
- Cable rollers
- Pull-in winches
